Concrete Monument Detail

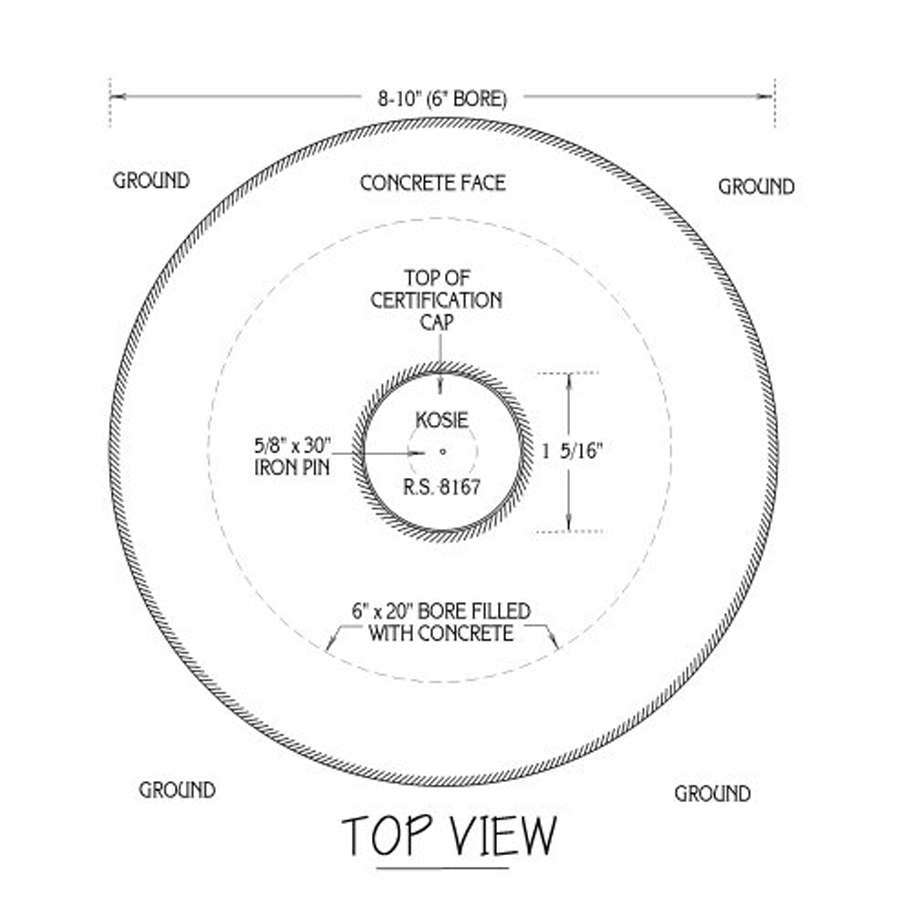

Top View
Top View Of A Typical Concrete Monument
Click To Enlarge

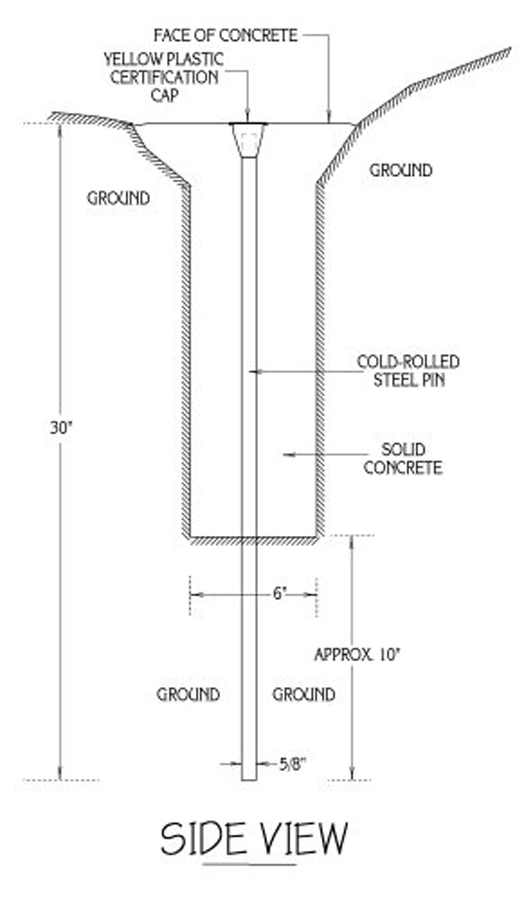

Side View
Side View of a Typical Concrete Monument
Click To Enlarge


Although our standard 5/8" diameter x 30" long "cold-rolled" iron pin corner monuments are durable, concrete monuments go one step further. These concrete monuments have over 150lbs of concrete. Concrete corner monuments are used when there is a specific need for added longevity and durability such as boundary disputes, construction sites surveys, heavily traveled areas, etc. These monuments usually will not be used to mark property lines.

Delmar B. Kosie & Associates Established in 1964 - Robert L. Kosie, PS8167 - Owner


There are additional fees for concrete monumentation. This cost is in addition to any survey fees.
